Managing a flooded garden

Waterlogging is one of the most common problems in Kingston, Surbiton and the surrounding Thames floodplain. London clay holds water like a sealed bowl; the increasing intensity of UK winter rainfall makes it worse; and many gardens have been quietly sealed off by extensions, conservatories and impermeable paving over the years. This guide covers what causes garden flooding, the practical interventions that actually work (from soil improvement through to engineered drainage), the right plant palette for damp ground, and when to bring in a professional.

A flooded garden isn’t one problem, it’s a symptom. The right intervention depends on the cause: heavy clay subsoil, a high water table, runoff from impermeable surfaces, blocked or absent drainage, or proximity to a watercourse or floodplain. Diagnose first, then act.

Why gardens flood

• Heavy clay subsoil. The dominant cause across Kingston, Surbiton, Hampton and the wider London clay belt. Clay particles are so fine they bind into a near-impermeable layer; water sits on the surface or drains painfully slowly. After heavy rain a clay garden can stay waterlogged for days.
• Compacted soil. Even non-clay soil compacts under foot traffic, machinery and the weight of waterlogged ground. Compaction destroys the pore structure that allows water to move through soil; the result behaves like clay even if it isn’t.
• Runoff from impermeable surfaces. Roofs, patios, driveways and conservatories shed every drop of rain that falls on them. Without proper drainage that runoff arrives in the garden as a concentrated stream and pools at the lowest point.
• High water table. Some sites in the Thames floodplain have a water table close to the surface in winter. Gardens here flood from below, not from above; conventional surface drainage doesn’t help.
• Blocked, broken or absent drainage. Older properties sometimes have land drains installed decades ago that have collapsed, silted up, or been broken by later construction. Newer properties may have no land drainage at all.
• Floodplain location. Properties near the Thames, the Hogsmill or the Beverley Brook can flood from the watercourse itself. Check the Environment Agency’s flood risk map (gov.uk/check-long-term-flood-risk) to understand the formal risk rating for your address.

Diagnose before you dig

A simple percolation test tells you most of what you need to know.

• Dig a hole 300 mm deep and 300 mm wide in the worst-affected area.
• Fill it with water and let it drain completely.
• Refill and time how long it takes to empty.
• Under 4 hours: free-draining soil. The problem is probably surface runoff or topography.
• 4-24 hours: slow drainage typical of clay. Soil improvement and minor drainage interventions will usually fix it.
• 24+ hours or never empties: severely impeded drainage or a high water table. Engineered drainage almost certainly required.

Also check: where does water enter the garden, where does it pool, where is the lowest point, and where might it discharge to? Drainage works by gravity; an outflow lower than the inflow is essential.

Improving heavy clay soil

For the typical Kingston or Surbiton garden where clay is the underlying cause, sustained soil improvement is the foundation of every other fix. Done properly over two or three seasons, it transforms drainage and plant health.

• Bulk organic matter. Well-rotted farmyard manure, garden compost, leaf mould or composted bark, applied as a 75-100 mm layer across borders each autumn. The organic matter binds with clay particles to create a more granular, free-draining structure. There is no shortcut; this is the single highest-value intervention.
• Horticultural grit. Coarse 6 mm grit forked into the top 200 mm of border soil creates permanent air spaces. Use sharp grit, not pea shingle (the rounded surfaces don’t key together properly).
• Gypsum. Calcium sulphate dihydrate, sold as ‘clay breaker’. Bonds with clay particles to create a more open structure. Useful on extreme clay but no substitute for organic matter.
• Stop walking on wet borders. Foot traffic on saturated clay compacts it instantly. Lay stepping stones or use boards if you have to cross a wet border.
• Raise the planting positions. Raised beds, mounded borders or even modest 150-200 mm berms keep root zones above standing water. Often the simplest workable solution.
• Avoid digging when wet. Working saturated clay smears the soil structure shut. Wait for the surface to dry to a workable consistency.

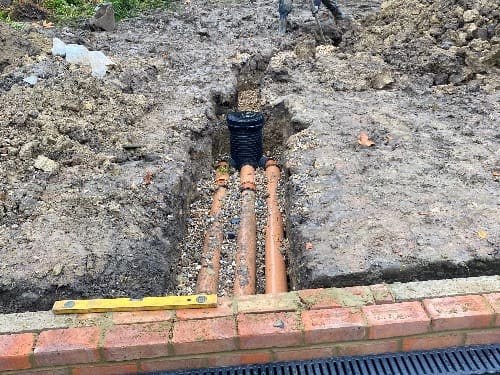

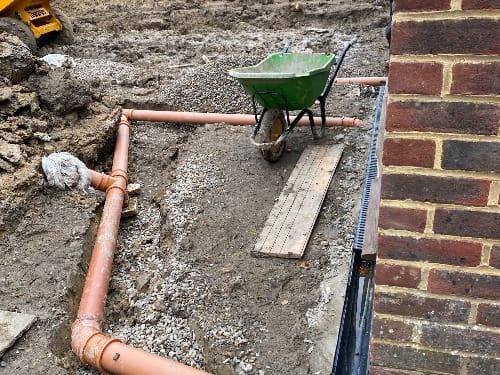

Engineered drainage solutions

Where soil improvement alone isn’t enough, engineered drainage moves water actively away from where it causes problems. The four approaches below cover almost every domestic situation.

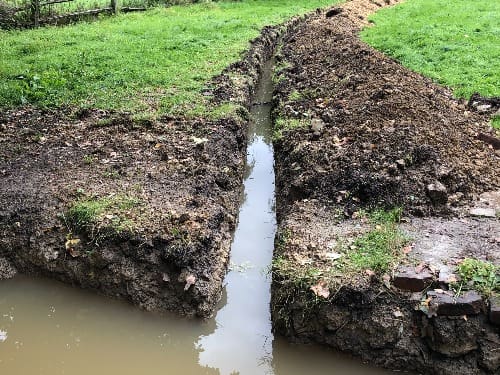

French drains

The standard solution for a chronically wet area or for intercepting runoff. A trench typically 300-500 mm deep and 200-300 mm wide, lined with permeable geotextile (Terram or equivalent), with a perforated 100 mm twin-wall plastic land-drain pipe laid to a fall of at least 1:80, surrounded by clean 20 mm angular drainage stone, wrapped over the top with the geotextile, and topped with a thin layer of soil and grass or stone. The pipe discharges to a soakaway, surface watercourse, or (only with utility permission) a surface-water drain. Never discharge into a foul sewer.

Soakaways

A buried structure that holds collected water and lets it disperse slowly into surrounding subsoil. Modern domestic soakaways use proprietary modular crates (Hydro-Brake, Polypipe Polystorm, ACO Stormbrixx) wrapped in geotextile, dimensioned per the Building Regulations Approved Document H. Located minimum 5 metres from any building, sized for the catchment area, and located in soil that actually percolates – a clay soakaway is a hole that stays full. On clay sites the right approach is often a soakaway dug down into a more permeable underlying layer, if one exists.

Rain gardens

A planted, shallow depression (typically 150-300 mm deep) designed to receive roof and patio runoff, hold it briefly, and let it soak away through engineered free-draining soil and tough water-tolerant planting. Rain gardens are the contemporary sustainable drainage (SuDS) approach: they reduce surface runoff, recharge groundwater, support wildlife, and look beautiful when designed well. They’re also one of the most rewarding garden interventions when the site allows.

Permeable surfaces

For driveways and patios, permeable construction lets rainwater drain through the surface rather than running off. Options: resin-bound gravel (smooth, clean, fully permeable), permeable block paving with open-jointed construction over a deep angular stone sub-base, gravel-grid systems (cellular plastic grid filled with gravel), or simple gravel. The Town and Country Planning (General Permitted Development) Order 2008 requires front gardens over 5 sq m to be either permeable or to drain to a soakaway; non-compliant impermeable surfaces require planning permission.

Plants that thrive in damp ground

A genuinely wet garden doesn’t need to be a problem. The UK has an excellent palette of moisture-loving plants that thrive in conditions that would kill most border perennials. The right selection depends on how wet: standing water, occasional flooding, or simply slow-draining damp.

For standing water (bog/marginal)

• Caltha palustris (marsh marigold). Bright yellow buttercup-like flowers in March-April. AGM. Native, brilliant for wildlife.
• Iris pseudacorus (yellow flag iris). Native iris with tall yellow flowers in May-June. Tolerates permanent standing water up to 200 mm deep.
• Mentha aquatica (water mint). Fragrant native marginal with pink-purple flower clusters. Spreads readily.
• Lythrum salicaria (purple loosestrife). Tall spikes of magenta flowers June-September. Excellent for pollinators.
• Filipendula ulmaria (meadowsweet). Creamy froth of fragrant flowers in summer. Native, attractive to bees and hoverflies.

For occasionally-flooded damp ground

• Iris ensata (Japanese iris). Striking flat-petalled blue, purple or white flowers. Thrives in damp neutral-to-acid soil but resents permanent saturation in winter.
• Astilbe spp. and cultivars. Plume-like flower heads in pink, white or red in summer, fern-like foliage. The classic damp-border perennial.
• Rodgersia spp. Bold horse-chestnut-like leaves, creamy-pink flower plumes. Architectural foliage plant for wet shade.
• Ligularia ‘The Rocket’. Tall yellow spires of flower, deep purple-tinged leaves. AGM.
• Persicaria amplexicaulis. Long-flowering bottlebrush spikes in red, pink or white from June to October. AGM.
• Hosta spp. Bold foliage plants for damp shade. Tolerate damp but not permanent saturation; ideal alongside a rain garden rather than in standing water.

Trees and shrubs for damp ground

• Salix spp. (willows). Famously water-loving. Salix alba ‘Britzensis’ for coloured winter stems; Salix caprea (goat willow) as a native pollinator tree. Note: roots seek water; site away from drains and foundations.
• Alnus glutinosa (common alder). Native, tolerates standing water. Catkins in spring, dark cone-like fruits in autumn.
• Betula pubescens (downy birch). The wet-tolerant native birch (in contrast to silver birch which prefers drier ground).
• Cornus sanguinea ‘Midwinter Fire’. AGM. Flame-orange winter stems on a shrub that thrives in damp ground.
• Sambucus nigra (elder). Tolerates damp ground; cream flower umbels in summer, black berries in autumn.
• Hydrangea paniculata. Tolerates damp soil better than H. macrophylla; reliable late-summer cream-to-pink flower panicles.
• Viburnum opulus (guelder rose). Native, white lacecap flowers in May, red berries in autumn, fiery autumn colour.

What to avoid

• Mediterranean planting in damp ground. Lavandula, Rosmarinus, Cistus, Salvia rosmarinifolia all rot in wet winter clay. Reserve these for raised beds, gravel gardens or sharp-drainage positions.
• Walking on saturated borders. Compacts soil instantly. Lay stepping stones or boards if you have to cross.
• Digging clay when wet. Smears the soil structure shut and makes the drainage problem worse. Wait for surface to dry.
• Soakaways on impermeable clay. A soakaway in clay is just a buried bucket. Either dig down to a more permeable layer, or use a different solution (rain garden, French drain to surface watercourse).
• Discharging drainage into a foul sewer. Illegal under the Water Industry Act 1991, overloads sewage treatment, and increases flooding risk elsewhere. Discharge only to a surface-water drain (with utility permission), watercourse (with Environment Agency permission where relevant), or soakaway.
• Adding sand to clay. An old myth. Sand combined with clay can produce something closer to concrete than improved soil. Use organic matter and grit instead.
• Planting willows or alders near drains, soakaways or foundations. Roots will find water and damage infrastructure. Site large water-loving trees a minimum of 10 metres from buildings and drainage runs.

When to call in a professional

Soil improvement and small-scale interventions are realistic DIY projects. Engineered drainage usually isn’t. Bring in a landscape contractor or drainage specialist if:

• The percolation test result is over 24 hours. Severely impeded drainage or a high water table needs professional assessment.
• Standing water threatens the house, garage, conservatory, or boundary walls. Foundations, retaining walls and basements all suffer from chronic waterlogging.
• The drainage run is more than 10 metres or requires soakaways. Falls, sizing, geotextile specification, soakaway sizing under Building Regulations Approved Document H all need proper design.
• Existing land drains need investigation, repair or replacement. Locating and assessing buried drainage is specialist work.
• You need a rain garden, complete drainage redesign or full hard-landscape rework. Integrated solutions deliver better results than piecemeal fixes.

Frequently asked questions

Why does my garden flood every winter?

The most common cause across Kingston, Surbiton and the wider London clay belt is heavy clay subsoil combined with runoff from impermeable surfaces and the absence of any meaningful drainage. Clay particles are so fine they bind into a near-impermeable layer, so water sits on the surface or drains painfully slowly. Add concentrated runoff from roofs, patios and driveways, and the garden has nowhere to send the water. A simple percolation test (a 300 mm hole filled twice with water) tells you whether the cause is slow soil drainage, severe impedance, or a high water table.

Should I add sand to my clay soil?

No. This is a persistent gardening myth. Sand combined with heavy clay can produce something closer to concrete than improved soil. The right amendments for clay are bulk organic matter (well-rotted manure, garden compost, leaf mould, composted bark) applied as a 75-100 mm autumn mulch each year, sharp horticultural grit forked into the top 200 mm of border soil, and on extreme clay a gypsum-based clay breaker. Sustained soil improvement over two or three seasons transforms heavy clay; there is no shortcut.

What is a French drain and when do I need one?

A French drain is a trench (typically 300-500 mm deep, 200-300 mm wide) lined with permeable geotextile, containing a perforated land-drain pipe laid to a minimum 1:80 fall, surrounded by clean angular drainage stone. It intercepts and moves water away from a wet area to a discharge point – a soakaway, surface watercourse, or surface-water drain. The right solution where you have a chronically wet patch, a localised low spot, or a runoff problem from a neighbouring property or hard surface. Not the right solution where there’s nowhere lower to discharge to.

What is a rain garden?

A planted, shallow depression (typically 150-300 mm deep) designed to receive roof and patio runoff, hold it briefly, and let it soak away through engineered free-draining soil and tough water-tolerant planting. Rain gardens are the contemporary sustainable drainage (SuDS) approach: they reduce surface runoff, recharge groundwater, support wildlife, and look beautiful when designed well. The right approach where you have runoff to manage and at least 5-10 sq m of garden to dedicate to it. Particularly effective for downpipe disconnections, where roof water that would otherwise enter the drainage system is redirected to the garden.

What plants tolerate a waterlogged garden?

For standing water and permanent wet (bog and marginal conditions): Caltha palustris (marsh marigold), Iris pseudacorus (yellow flag iris), Mentha aquatica (water mint), Lythrum salicaria (purple loosestrife), Filipendula ulmaria (meadowsweet). For occasionally-flooded damp ground: Iris ensata, Astilbe, Rodgersia, Ligularia, Persicaria amplexicaulis, Hosta. Trees and shrubs for damp ground: Salix (willow), Alnus glutinosa (alder), Betula pubescens (downy birch), Cornus sanguinea, Sambucus nigra, Hydrangea paniculata, Viburnum opulus. Site large water-seeking trees (willow, alder) at least 10 metres from drains and foundations.

Do I need planning permission for drainage work?

For most domestic drainage work, no. Soakaways must be located at least 5 metres from any building under Building Regulations Approved Document H, and sized appropriately for the catchment. Front gardens over 5 sq m must be either permeable or drain to a soakaway (Town and Country Planning General Permitted Development Order 2008); non-compliant impermeable front-garden paving requires planning permission. Discharging drainage into a foul sewer is illegal under the Water Industry Act 1991. Discharging into a surface-water drain requires permission from the water utility; into a watercourse may require Environment Agency consent. For listed buildings or properties in conservation areas with Article 4 directions, check with the local planning authority.
